Elystan Place, Chelsea

Heating and plumbing design for a town house refurbishment: heating, domestic hot and cold water services and above-ground drainage, issued as a coordinated drawing set for the installing contractor.

Location
Chelsea, London SW3
Sector
Residential
Expertise
Digital construction
Services
Heating and plumbing design · Heating and hot water design · Domestic water services · Above-ground drainage
Dates
2024
Street elevation of the refurbished town house at Elystan Place, Chelsea: stock brick with white sash windows and an arched front door
Scope

What BEIM did

  1. 01

    Heating design, including underfloor heating circuits set out room by room with manifold positions and loop lengths.

  2. 02

    Domestic hot and cold water services and above-ground drainage drawings issued from one coordinated set.

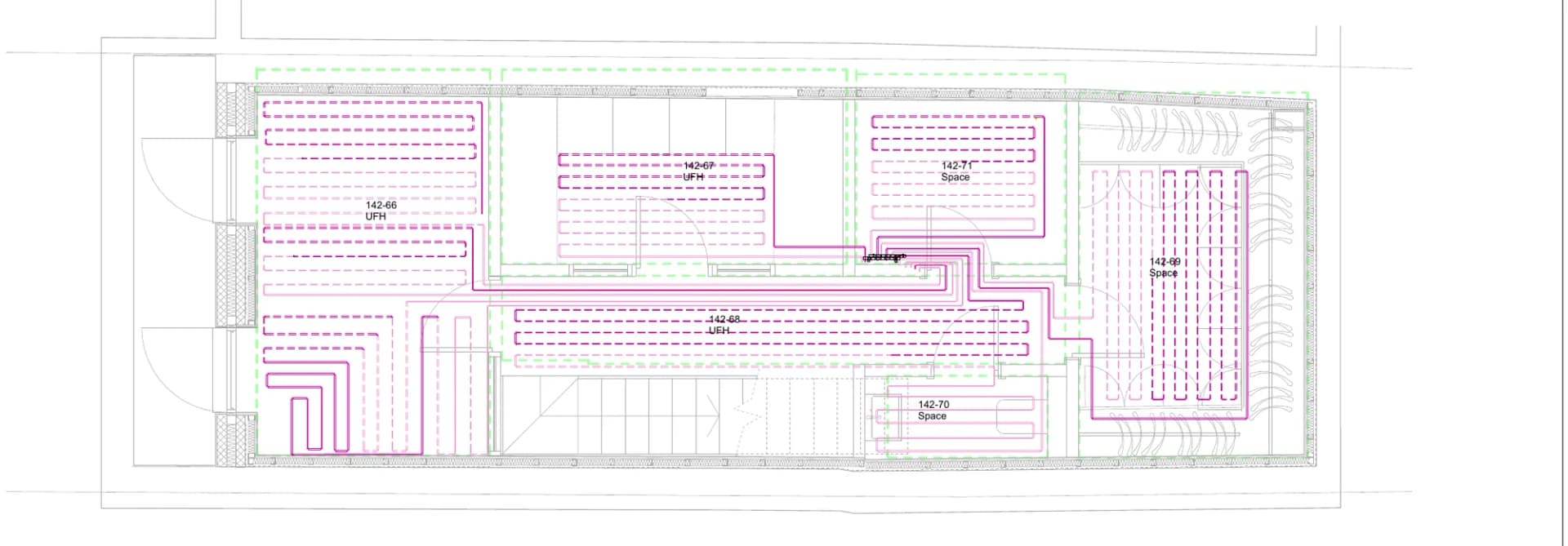

Lower ground floor underfloor heating circuits
Lower ground floor · UFH circuits · 1:25

More residential work

All projects

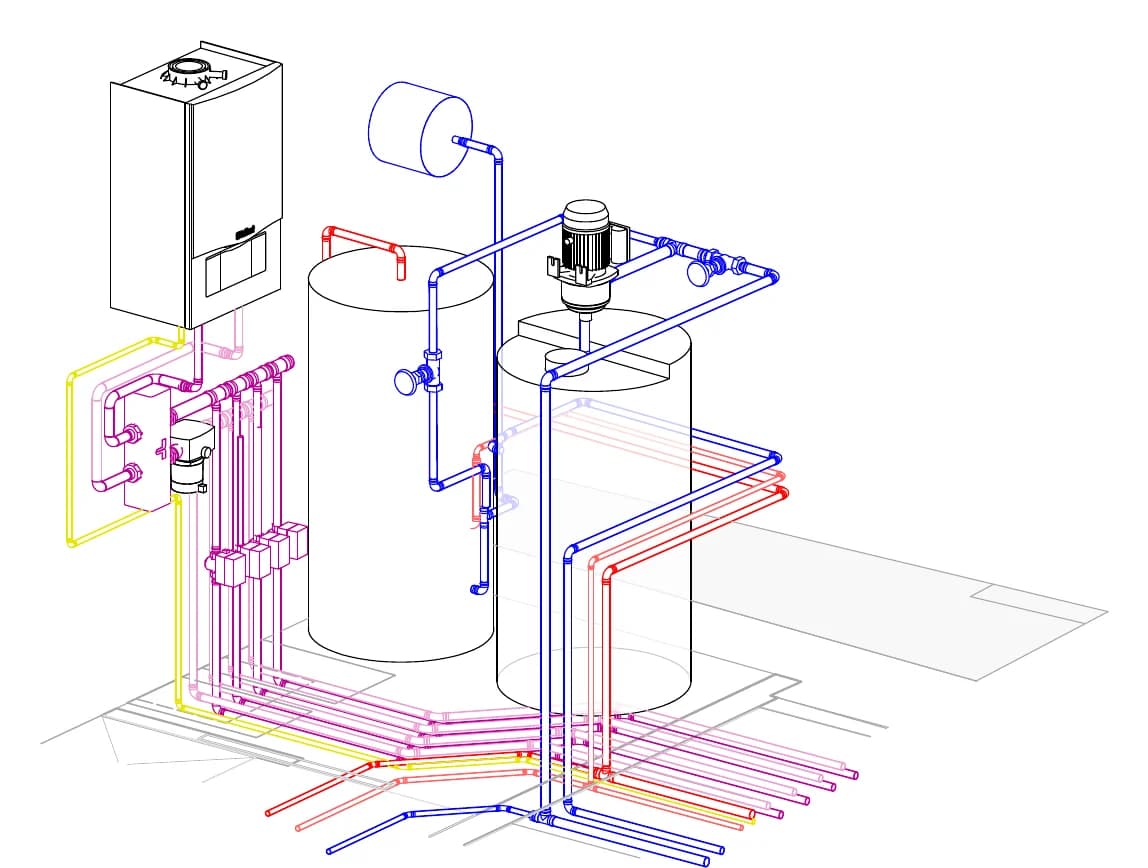

Isometric Revit view of the plant room showing boiler, cylinder, pump and colour-coded pipework
